ALITE MOVING FLOOR

Features of Alite Moving Floor

The ALITE GROUP Heavy-Duty walking floor model is a hydraulic solution for the horizontal loading and unloading of vehicles and/or static installations of large tonnage for fractional or palletized loads. This model is in accordance with the Machinery Regulation (CE) and other current regulations. They incorporate all the technical advances from their design to their manufacture and commissioning.

Standard equipment:

  • Equipment integrated in a modular frame for easy assembly
  • 3 double-acting cylinders with a reinforced diameter of 105 mm.
  • Modular type F125 chrome plated steel shanks removable in 2 independent sections.
  • Rod sliding guides for plated shanks machined in Delrin with bronze guide tapes.
  • 3 bars of guide blocks in machined polyethylene.
  • Fixed console type electric control panel, cable control and 4-channel radio control.
  • Workpressure (bar):   240
  • -Max. Flow (l/min):   40 – 110
  • Load-unload:   30 Tn
  • Standar drive:   Electric
  • Emergency drive:   Byhand
  • Weight (Kg):   485
  • Total cycle time (100 l /min):   12 cycle/min
  • MáxPower (100 l/min):   35,5 kW

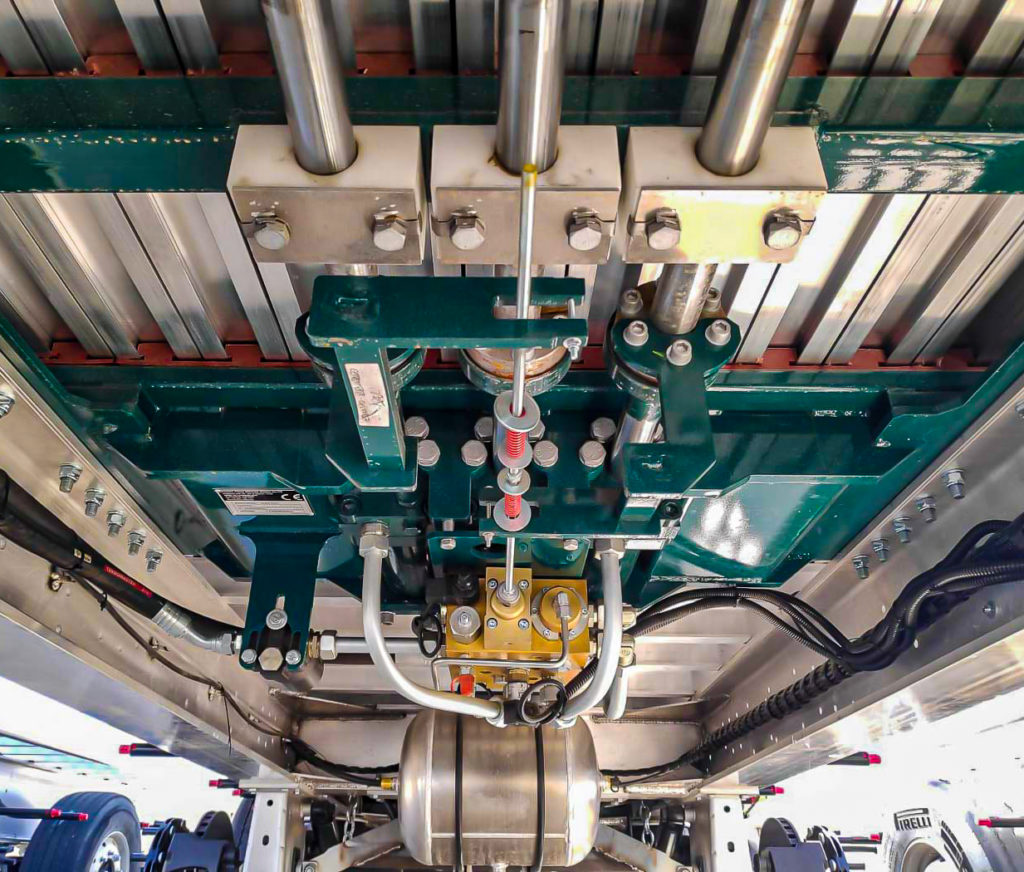

20140206_084043

Assembly and safety elements of Alite Moving Floor

The equipment will be fixed in a screwed way, using the fixing plates included in the equipment frame, on the mounting frame. The minimum mounting width will be 1,100 mm and the maximum 1,400 mm. The integrated frame also allows the fixing and reinforcement of the side panels of the enclosure in a screwed way.

Alite Moving Floor safety elements

Integrated security parts as standard:

  • Overpressure valve rated al 220 bar.
  • Emergency stop.
  • Shielded and sealed pushbuttons IP67.
  • Electric fuse box protection.
  • Emergency manual override.
  • Adhesives and rating plates.

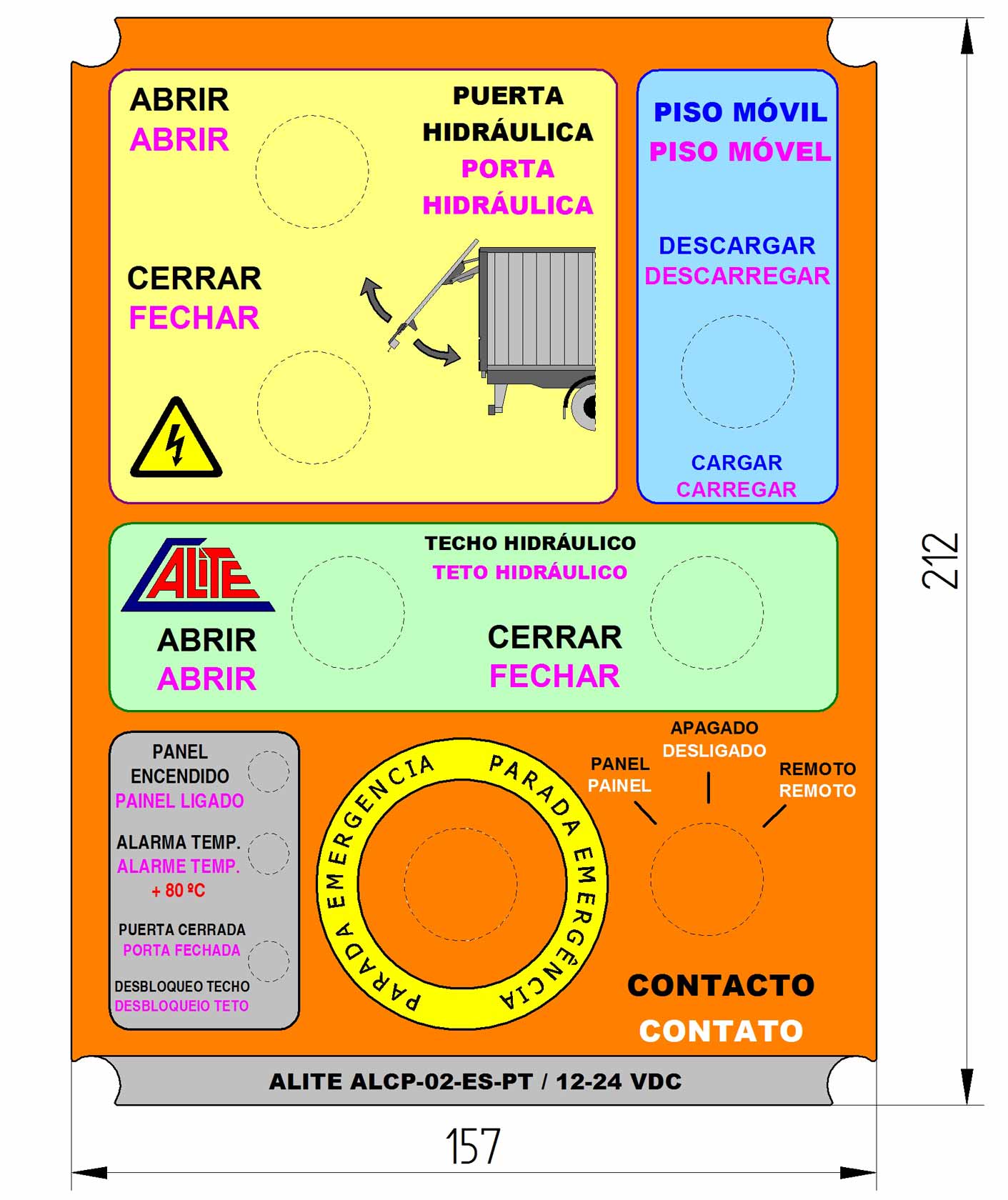

  • Onswitchwith 3 positions.

Manual control on / off

Manual loading / unloading control

Parts and elements Alite Moving Floor

CODE

NAME

UNITS

1

047-005-3-003

CONJUNTO ESTRUCTURA PISO MÓVIL ALITE ESTÁNDAR REV.2

1

2

047-005-214

PISO MÓVIL ALITE VÁSTAGO 01 + CON MEDIAS BRIDAS (F127+CR)

1

3

047-005-215

PISO MÓVIL ALITE VÁSTAGO 02 + CON MEDIAS BRIDAS (F127+CR)

1

4

047-005-216

PISO MÓVIL ALITE VÁSTAGO 03 + CON MEDIAS BRIDAS (F127+CR)

1

5

041-004-046

BRIDA MÓVIL DOBLE TORNILLO AJUSTE PLANO PM

4

6

041-004-032

BRIDA MÓVIL DOBLE TORNILLO PATÍN PM ESTÁNDAR

2

7

047-005-2-021

CONJUNTO TOPE CAMBIO CILINTDRO 3 PM ALITE

1

8

047-005-2-020

CONJUNTO TOPE CAMBIO CILINTDRO 1 PM ALITE

1

9

041-004-030

CHAPA SOPORTE DISTRIBUIDOR

1

10

047-005-200

DISTRIBUIDOR PISO MÓVIL ALITE ELÉCTRICO S/ELEC S/sOBREP

1

11

047-005-2-023

CUÑA AJUSTE PM ALITE

3

CODE

NAME

UNITS

22

047-005-2-013

PATÍN 01 PISO MÓVIL ESTÁNDAR REV.1

1

23

047-005-2-014

PATÍN 02 PISO MÓVIL ESTÁNDAR REV.1

1

24

047-005-2-015

PATÍN 03 PISO MÓVIL ESTÁNDAR REV.1

1

25

047-005-2-050

PISO MÓVIL ALITE BLOQUEO GUÍA DELRIN MACIZO D45 + CINTA GUÍA BRONCE

6

26

047-005-2-025

CONJUNTO TIRANTE DE PISO MÓVIL

21

27

047-005-210

PATÍN COMPACTO PISO MÓVIL ALITE 6U PEINTE 112,3 mm

9

28

047-005-211

PATÍN COMPACTO PISO MÓVIL ALITE 3U PEINTE 112,3 mm

3

CODE

NAME

UNITS

12

047-005-1-200

PISO MÓVIL ALITE CILINDRO 01 REF. 45-105-180 S.BANC. V.2016

1

13

047-005-1-201

PISO MÓVIL ALITE CILINDRO 02 REF. 45-105-180 S.BANC. V.2016

1

14

047-005-1-202

PISO MÓVIL ALITE CILINDRO 03 REF. 45-105-180 S.BANC. V.2016

1

15

047-005-2-019

CONJUNTO VARILLA Y MUELLES PM ALITE

1

16

002-011-076

FILTRO FILTREC MEDIA PRESIÓN (280 bar) F280D1200B4DSO

1

17

047-005-1-028

PISO MÓVIL ALITE TUBO D22 ENTRADA PRESIÓN DISTRIBUIDOR

1

18

047-005-1-029

PISO MÓVIL ALITE TUBO D22 SALIDA - A - DISTRIBUIDOR

1

19

047-005-1-030

PISO MÓVIL ALITE TUBO D22 SALIDA - A1 - DISTRIBUIDOR

1

20

047-005-1-031

PISO MÓVIL ALITE TUBO D22 SALIDA - B - DISTRIBUIDOR

1

21

047-005-1-032

PISO MÓVIL ALITE TUBO D22 SALIDA - B1 - DISTRIBUIDOR

Types of sheets

031-002-076 18505 LÁMINA PISO MÓVIL 21
STD ALITE-CARGO 21 AL6082 T6 (2,911 kg/m)

031-008-026 4018 LÁMINA PISO MÓVIL 21 STD
CARGO e=6 mm DOBLE LAB. AL6082 T6 (2,714
kg/m)

031-008-028 4589 LÁMINA PISO MÓVIL 21 STD
CARGO e=8 mm AL6082 T6 (3,226
kg/m)

031-008-012 4132 LÁMINA PISO MÓVIL 21
SEMIESTANCA AL6082 T6 (3,564
kg/m)

031-002-074 LÁMINA PISO MÓVIL 21 LISA
STD ALITE-CARGO 21 L6082 T6 (2,884
kg/m)

031-008-004 4014 LÁMINA PISO MÓVIL 21 STD
CARGO e=6 mm AL6082 T6 (2,668
kg/m)

031-008-018 4343 LÁMINA PISO MÓVIL 21 STD
CARGO e=10 mm AL6082 T6 (3,818
kg/m)

031-008-019 4385 LÁMINA PISO MÓVIL 24 LÁMINAS
AL6082 T6 (2,287
kg/m)

Sheet characteristics

047-005-026 CUÑA LÁMINA PISO MÓVIL 21 L
ALUMINIO SOLDABLE (0,262 kg)

047-005-036 CUÑA LÁMINA PISO MÓVIL 24 L
ALUMINIO SOLDABLE (0,242 kg)



047-005-206 DESLIZADOR INYECTADO TIPO A PISO
MÓVIL ESTÁNDAR

043-005-006 DESLIZADOR PISO MÓVIL ESTANCO
ALITE POLIETILENO 70X10X1000 mm



MONTAJE SISTEMA PISO ESTANCO DE IMPACTO 18 LÁMINAS

031-002-065 17479 LÁMINA PISO MÓVIL ALITE
ESTANCO IMPACTO AL6082 T6 (2,628 kg/m)

031-002-067 17177 BASE PISO MÓVIL ALITE
ESTANCO IMPACTO AL6082 T6 (1,136 kg/m)

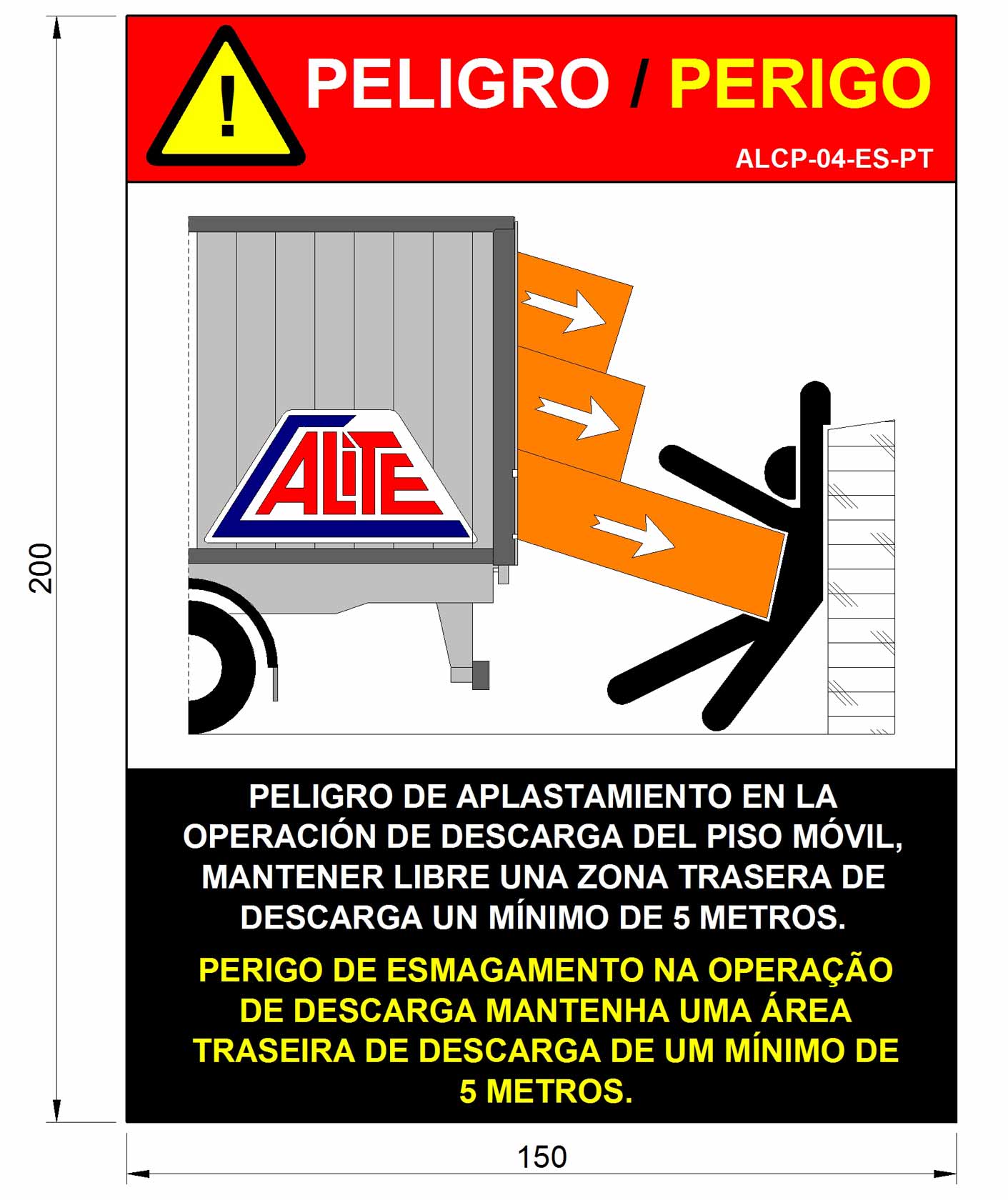

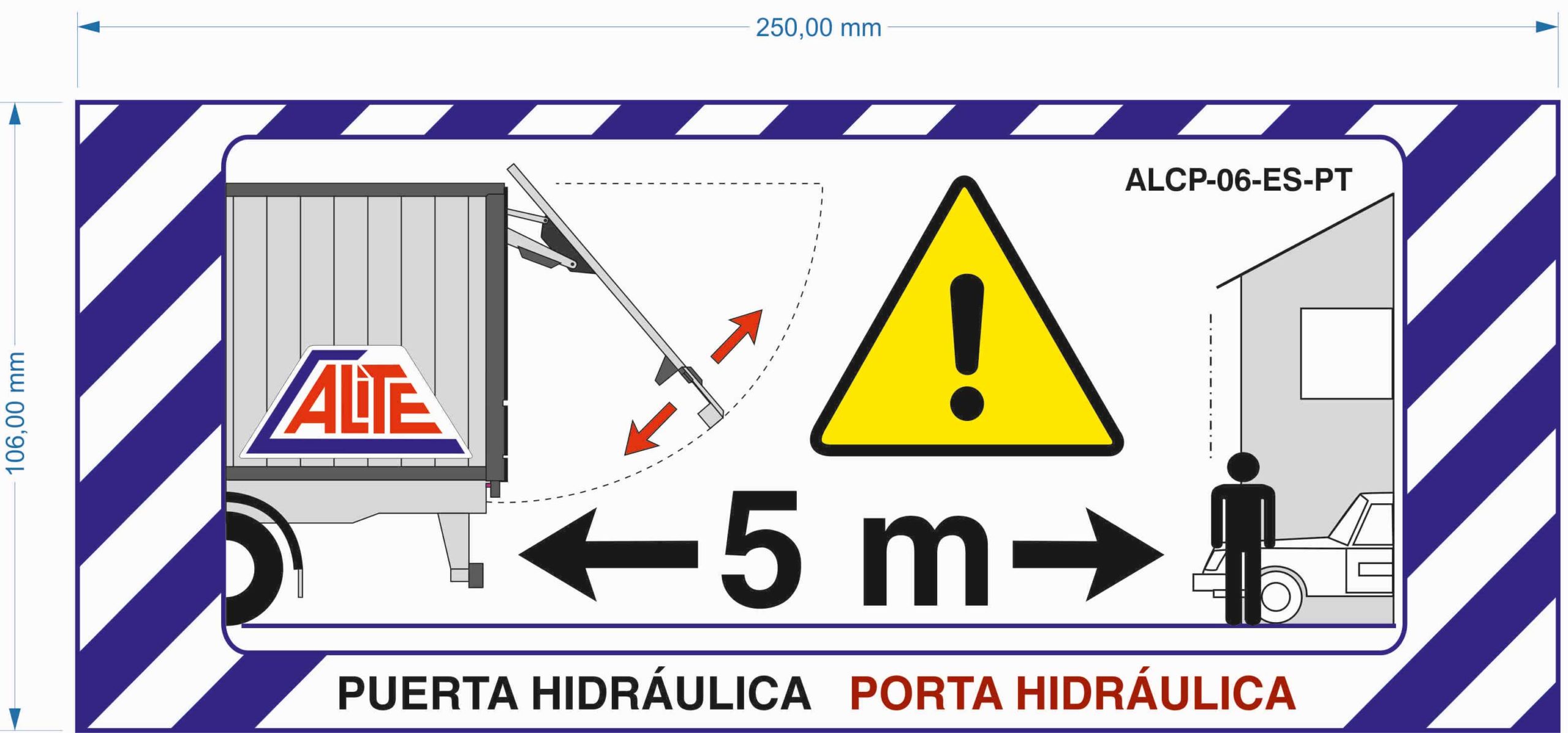

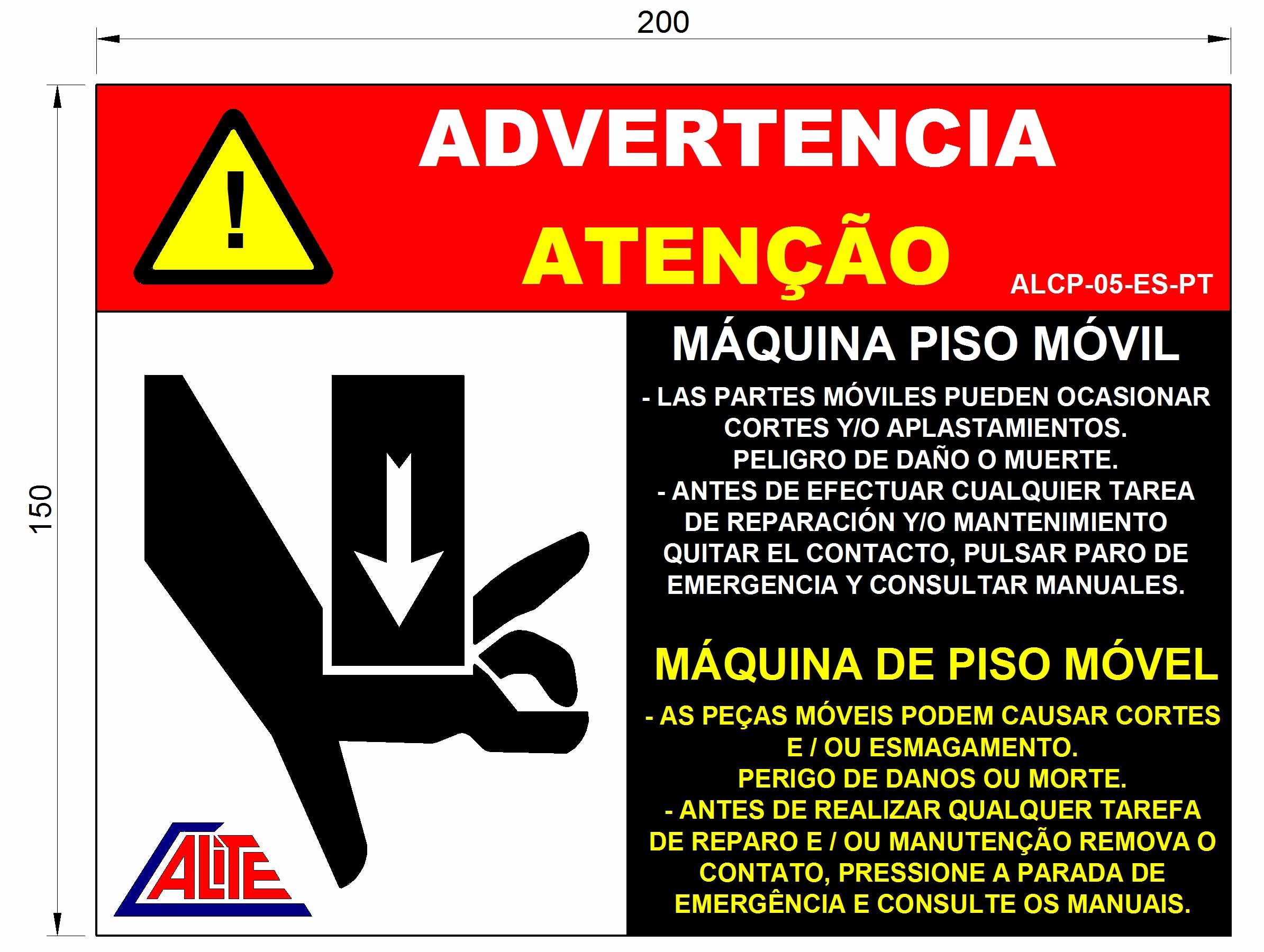

Signaling
