  The ALITE family of Leak Proof (LP) mobile floor semi trailers is mainly designed to be able to load and transport goods with a high liquid content without generating any spillage.

  With a 450 mm high double T aluminium extrusion chassis for the entire range, the LP family is available in two models depending on the degree of liquid content of the goods and/or the required level of tightness. Bothhave a hydraulicdoorwith a hermeticseal.

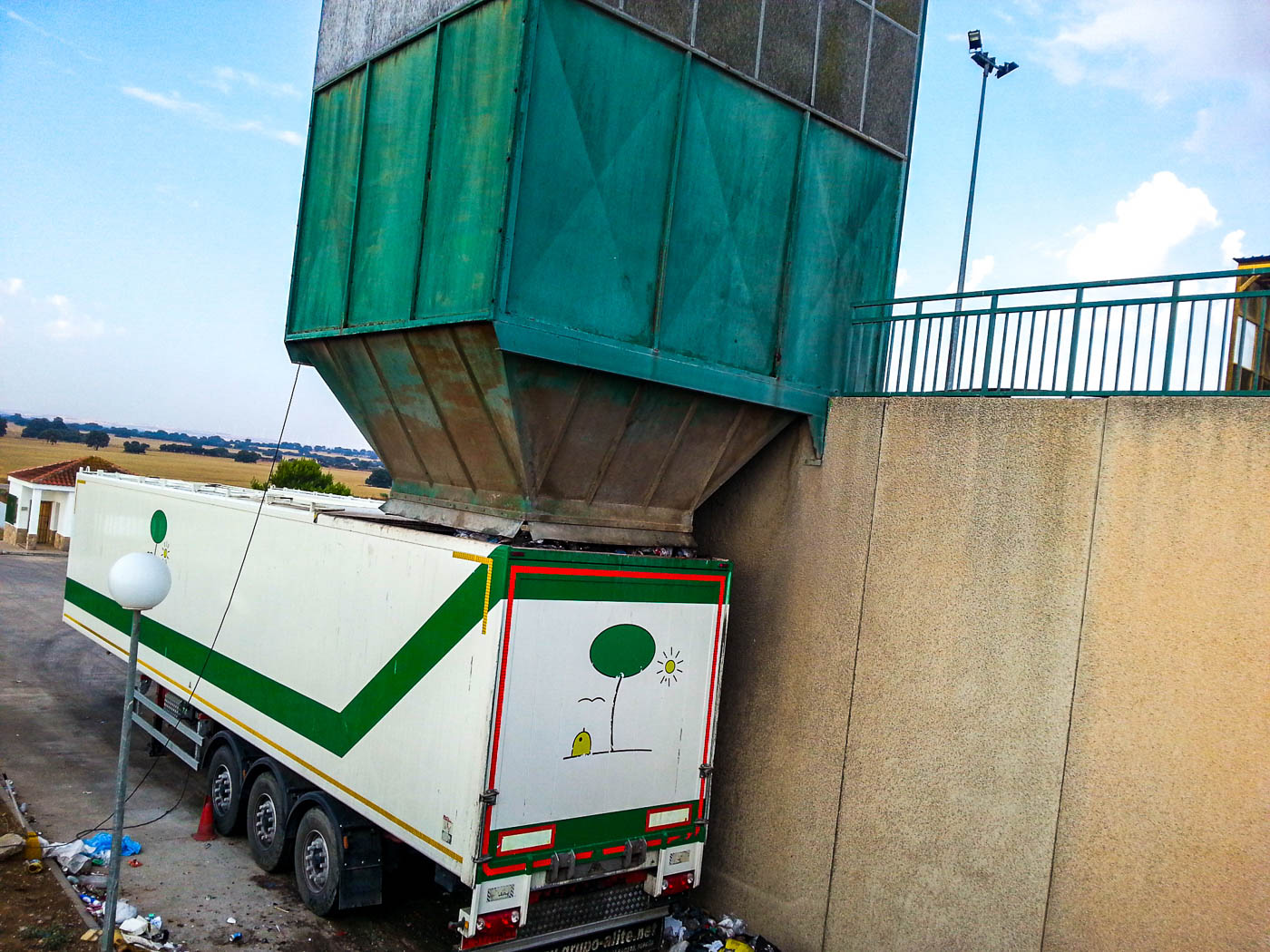

  The Leak Proof 100% model is ideal for transporting solid urban waste in an efficient manner and in compliance with the most stringent regulations on landfill control. Its unique design guarantees leak-proof transport on a clear interior surface and without loss of interior volume.

So that your cargo doesn’t produce spillage

The ALITE semi-trailer with open body and moving floor
for the transport without spillage of goods with liquids.

So that your cargo doesn’t produce spillage

The ALITE semi-trailer with open body and moving floor
for the transport without spillage of goods with liquids.

LEAK PROOF VEHICLE KEY FEATURES

100% WATERTIGHT

LESS ENVIRONMENTAL IMPACT.
THE TRANSPORT OF LIQUIDS IS POSSIBLE WITH YOUR ALITE LP WALKING FLOOR

LARGE VOLUME

IMPROVE YOUR INCOME.
ON EACH TRIP YOU WILL HAVE THE HIGHEST POSSIBLE PAYLOAD

LIGHT

WE OFFER YOU THE LESS EMPTY WEIGHT. SO YOU CAN LOAD THE MAXIMUM

ROBUST AND RESISTANT

ALITE IS A SAFE INVESTMENT
YOUR WALKING FLOOR WITH A LONG USEFUL LIFE

RELIABLE

SO ROBUST AND RESISTANT THAT WE CAN OFFER YOU THE BEST GUARANTEE

LP 100%

BULK GOODS WITH HIGH LIQUID CONTENT

BULK GOODS WITH HIGH LIQUID CONTENT

  100% watertight moving floor semi-trailer model for the transport of bulk goods with high liquid content. Our lightweight design and construction maintains the reliability, strength and durability values of ALITE brand vehicles with the lowest possible curb weight.

  The LP 100% model has a continuous chassis with a reinforced 80mm high neck to guarantee the highest load capacity. It mounts a hydraulically  actuated hermetically closing door and the rear cantilever moving floor machine below the floor. Maximum load on the coupling pin (KP) is 16 tn. Useful interior height from the floor of the sheets of 2,730mm for a KP height of 1,150mm.

It comes standard with wheels with tires of dimensions 385/65 R22.5, possibility of mounting 385/55 R22.5.

  • Equipment with 18 reinforced sheets for impacts with continuous sliding guides.
  • Hydraulic door with 6 synchronized closures.
  • Machembed aluminum panel board floor without 35mm high crossbars below the sheets.
  • 650 l capacity rear liquid collector tank closed by the rear door.
  • 100% complete tightness. Polymer sealed joints.
  You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.


LP SEMI

BULK GOODS WITH LOW LIQUID CONTENT

BULK GOODS WITH LOW LIQUID CONTENT

  It is a more economical reduced version of the 100% LP model intended for bulk goods with a low liquid content. His design and lightweight construction maintains the values of reliability, resistance and durability of ALITE brand vehicles with the lowest empty weight possible.

The model has a reinforced self-supporting type continuous chassis to guarantee the highest load capacity. Assemble a hermetic door with a drive that guarantees a partial tight closure.

Maximum load on the coupling pin (KP) of 16 tn. Useful interior height from the floor of the sheets of 2,730 mm for a KP height of 1,150 mm.

It comes standard with wheels with tires of dimensions 385/65 R22.5, possibility of mounting 385/55 R22.5.

  • Equipment with 18 reinforced sheets for impacts with continuous sliding guides.
  • Hydraulic door with 6 synchronized closures.
  • 5 – 6 mm aluminum sheet floor welded on 80 mm double T aluminum cross members.
  • Guaranteed tightness 30 mm above the sheet metal floor.

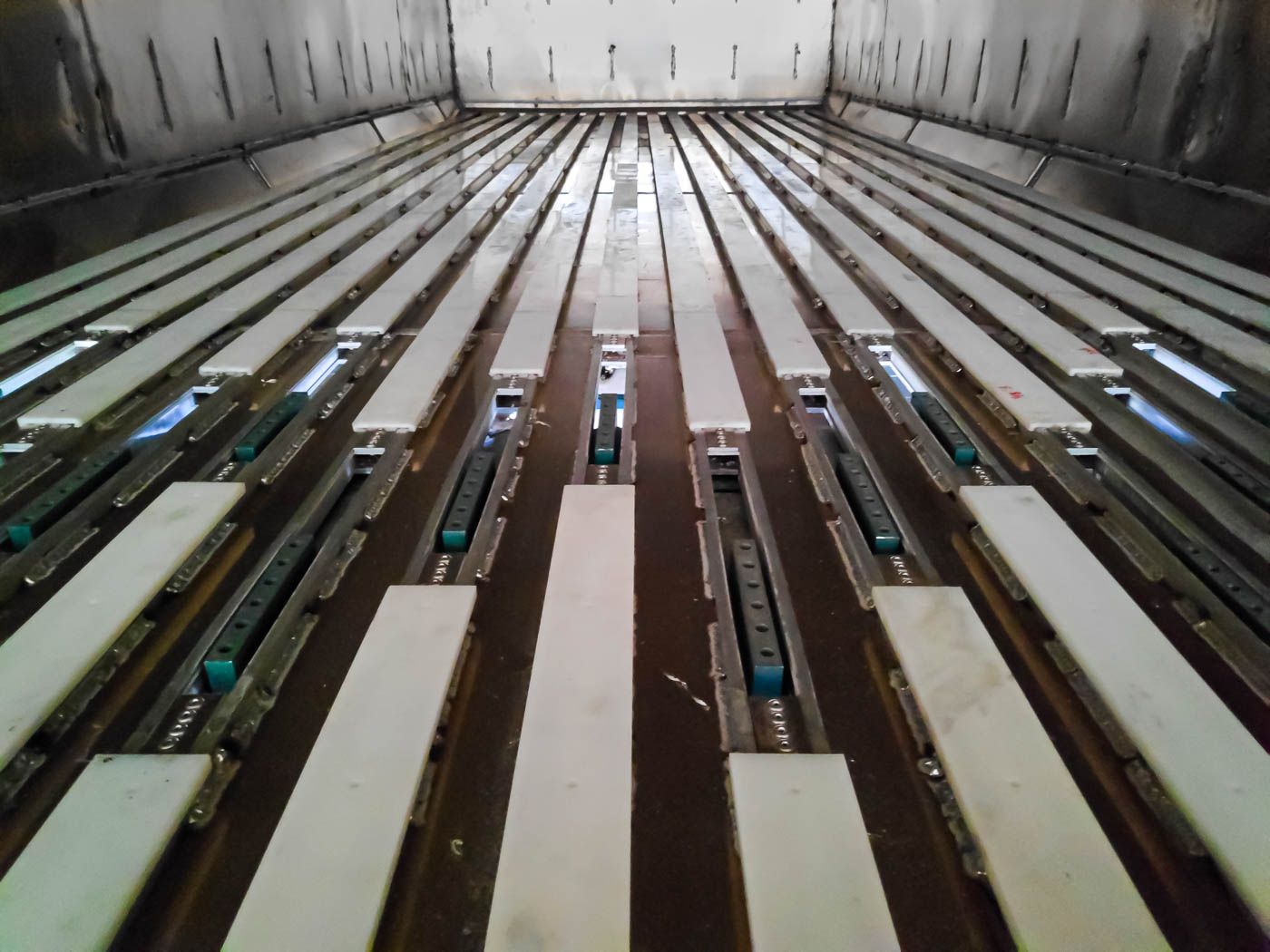

 The semi-trailer mounts a sheet metal floor with grooves in the area where the sheets are tied to the movement groups of the moving floor machine for the collection of fluids. The moving floor machine installation is located in the central part of the semi-trailer. In this way, a watertightness is guaranteed up to a height of 30 mm above the sheet metal floor that acts as a collecting tray. Access to the moving floor machine is easy and complete analogous to a standard moving floor vehicle.

  You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposal starts from a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.



COMPARATIVE

Technical Comparison

VALUE

MODEL

HEIGHT KP

mm

A

TPMM KP *

kg

B

USEFUL VOLUME

C

USEFUL HEGHT

mm

D

EMPTY WEIGH

STANDARD VERSION

kg

LEAK PROOF 100%

1,150 mm

(1,150 - 1,200)

16,000 kg

91.4 m³

2,730 mm

9,175 kg

LEAK PROOF SEMI

1,120 mm

(1,150 - 1,200)

16,000 kg

91.4 m³

2,730 mm

8,220 kg

* TPMM = Technically Permissible Maximum Mass.

GALLERY

DISCOVER ALL THE ADVANTAGES OF THE LP SEMI-TRAILER FAMILY.
