LD – LATERAL DOORS
The ALITE family of Lateral Doors (LD) moving floor semi-trailers is mainly designed for side loading thanks to its many side door options.

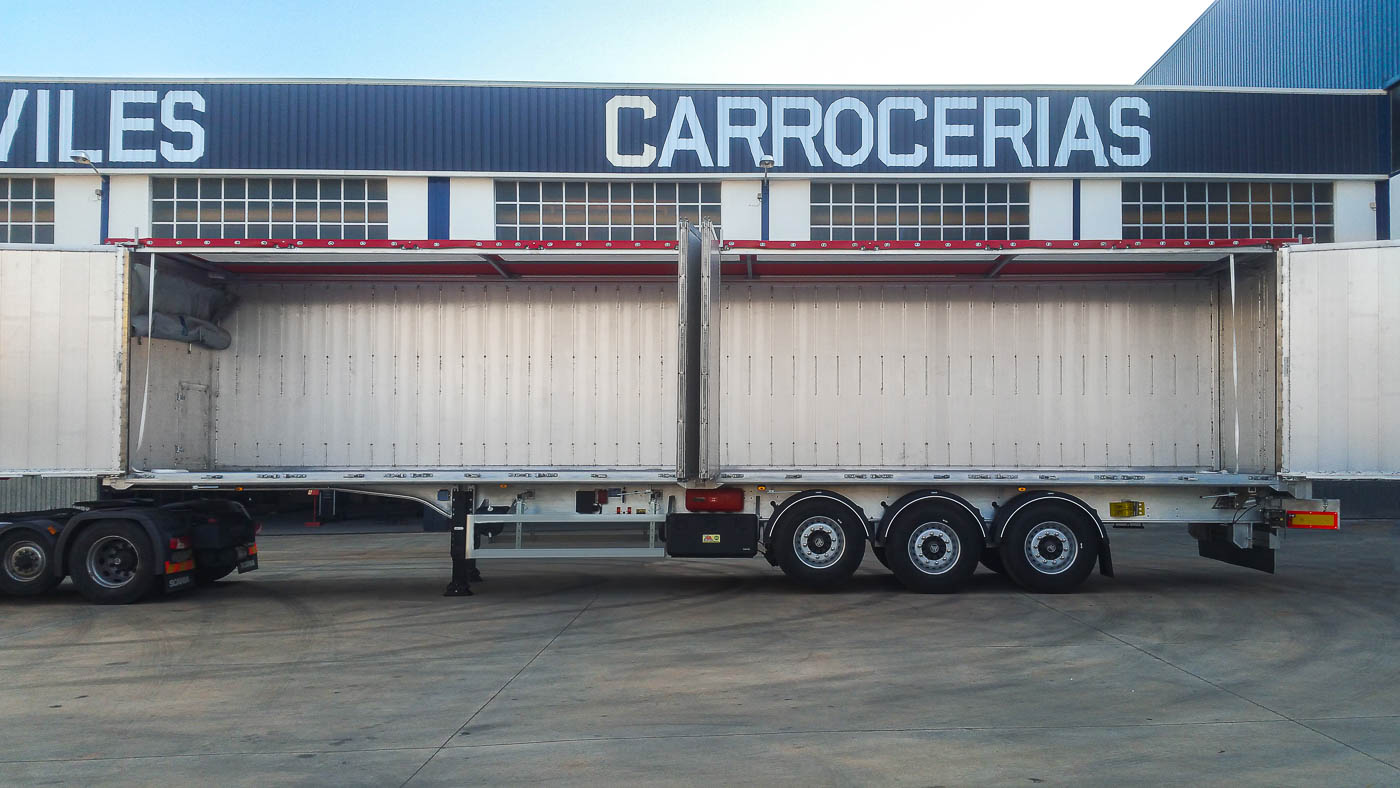

With a 450 mm high double T aluminium extrusion chassis for the entire range, the LD family is available in three versions depending on the number and arrangement of side entrances. The LP range allows you to fit any possible side door arrangement, with a full-opening model on both sides.
For some versions, we also offer two models depending on the height and load capacity of the coupling pin.
To increase the flexibility of your loading process
The ALITE semi-trailer with moving floor and open box
with configurable side access doors to load as you want.
To increase the flexibility of your loading process
The ALITE semi-trailer with moving floor and open box
with configurable side access doors to load as you want.
LATERAL DOORS VEHICLE KEY FEATURES
ACCESSIBILITY
IT GUARANTEES YOU MORE CARRYING. CHOOSE THE QUANTITY AND POSITION OF THE SIDE DOORS AS YOU WANT
STRONG
LIGHT
BENEFIT FROM ITS LOW EMPTY WEIGHT
RESISTANT
THE BEST ALLY FOR YOUR BUSINESS.
LARGE VOLUME
DO NOT LOSE CHARGING POSSIBILITIES
RELIABLE
FAMILY LD BACK
THE WALKING FLOOR SEMI-TRAILER
WITH 1 OR 2 SETS OF SIDE DOORS IN THE REAR.
THE WALKING FLOOR SEMI-TRAILER WITH 1 OR 2 SETS OF SIDE DOORS IN THE REAR.

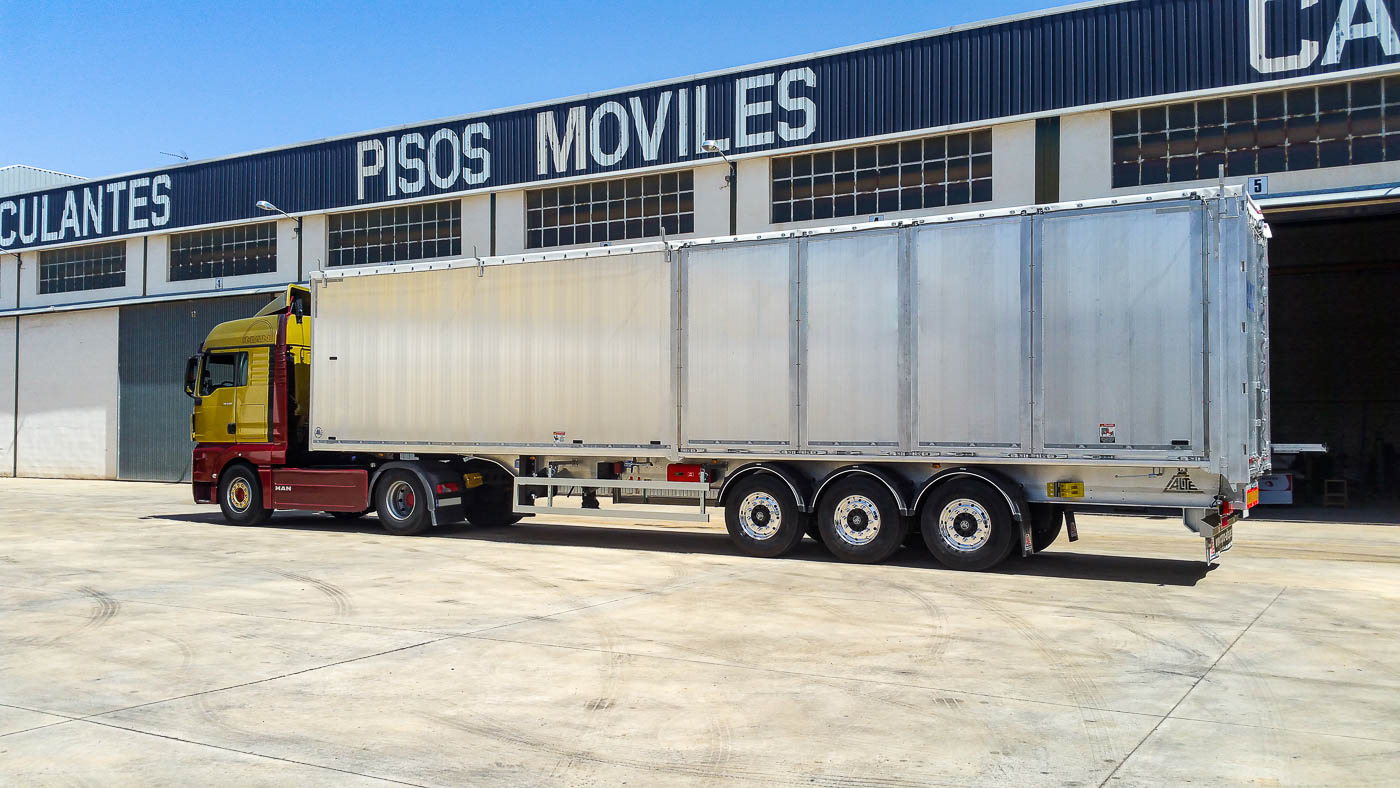

The vehicles of the LD BACK family allow the mounting of 1 or 2 sets of 4-leaf doors at the rear of the semi-trailer. They have characteristics that make it one of the most robust on the market in its segment to guarantee maximum safety on the most difficult terrain and loads. It is the ideal vehicle for loading and unloading bulk products and standard or large pallets.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposed part of a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.
Here is a summary of the main characteristics of the models in this family.
MODELS
LD BACK KP-LOW
For dry bulk and / or palletizable cargo for a fifth wheel height on the tractor of 1,100 to 1,150 mm. Maximum load on the coupling pin (KP) of 12 tn. Assemble 1 or 2 sets of 4-leaf doors at the rear. Free passage height on the sides of 2,580 mm with a KP height of 1,120 mm.
LD BACK KP-HIGH
For dry bulk and / or palletizable cargo for a fifth wheel height on the tractor of 1,200 to 1,250 mm. Maximum load on the coupling pivot (KP) of 16 tn. Assemble 1 or 2 sets of 4-leaf doors at the rear. Clearance height on the sides of 2,500 mm with a KP height of 1,200 mm.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD OR APPLICATION.
SEMI-TRAILER WITH 385/65 R22.5 TIRES. OPTIONAL 385/55 R22.5.
LD FRONT
THE WALKING FLOOR SEMI TRAILER THAT
CAN MOUNT UP TO 3 SETS OF SIDE DOORS.
THE WALKING FLOOR SEMI TRAILER THAT CAN MOUNT UP TO 3 SETS OF SIDE DOORS.
This model mounts 1 set of side doors on the front right or left and up to 2 sets of side doors on the rear.
The LD Front model has a continuous chassis with a reinforced 80 mm high neck to be able to operate with guarantees 1 set of side doors at the front. Maximum load on the coupling pin (KP) of 12 tn. Clearance height on the sides of 2,530 mm with a KP height of 1,120 mm.
You can configure the vehicle with the multiple options available to adapt it to your purpose according to your preferences. Our proposed part of a base vehicle with various selectable options. We are a flexible factory with complete autonomy in the production of all components. You can see the complete information with ALL the possibilities in its technical sheet.
CHOOSE THE MODEL THAT BEST SUITS YOUR TRACTOR HEAD OR APPLICATION.
SEMI-TRAILER WITH 385/65 R22.5 TIRES. OPTIONAL 385/55 R22.5.
LD COMPLETE
THE MOVING FLOOR SEMI-TRAILER WITH
LD COMPLETES UP TO 4 SETS OF SIDE DOORS.
THE MOVING FLOOR SEMI-TRAILER WITH LD COMPLETES UP TO 4 SETS OF SIDE DOORS.
This model mounts 1 or 2 sets of side doors at the front and up to 2 sets of side doors at the rear.
The LD Complete model has a continuous chassis with a reinforced 140 mm high neck to be able to operate with guarantees up to 2 sets of side doors at the front. Maximum load on the coupling pin of 16 tn. Free passage height on the sides of 2,390 mm with a KP height of 1,120 mm.
SEMI-TRAILER WITH 385/65 R22.5 TIRES. OPTIONAL 385/55 R22.5.
COMPARATIVE
Technical Comparison
VALUE MODEL | HEIGH KP mm A | TPMM KP * kg B | USEFUL VOLUME m³ C | USEFUL HEIGHT mm D | CLEAR DOORWAY HEIGHT mm H | FD FRONT DOOR | RD REAR DOOR | EMPTY WEIGHT STANDARD VERSION (FD-RD) kg |
|---|---|---|---|---|---|---|---|---|
LD BACK KP LOW (MAX 2 DOORS) | 1,120 mm (1,100 - 1,150) | 12,000 kg | 91.4 m³ | 2,730 mm | 2,580 mm | 0 | 1 or 2 | 7,650 + 124 (0 -1) |
LD BACK KP HIGH (MAX 2 DOORS) | 1,200 mm (1,200 - 1,250) | 16,000 kg | 88.7 m³ | 2,650 mm | 2,500 mm | 0 | 1 or 2 | 7,780 + 124 (0 - 1) |
LD FRONT (MAX 3 DOORS) | 1,120 mm (1,100 - 1,150) | 12,000 kg | 89.7 m³ | 2,680 mm | 2,530 mm | 1 | 0, 1 or 2 | 7,620 +124 (1 - 0) |
LD COMPLETE (MAX. 4 DOORS) | 1,200 mm (1,200 - 1,250) | 16,000 kg | 85.0 m³ | 2,540 mm | 2,390 mm | 1 or 2 | 0, 1 or 2 | 7,760 + 124 + 124 (1 - 1) |
*TPMM = Technically Permissible Maximum Mass.
*DOOR = Access formed by four (4) leaves with opening of two (2) leaves on one side and other two (2) leaves on the opposite side.
